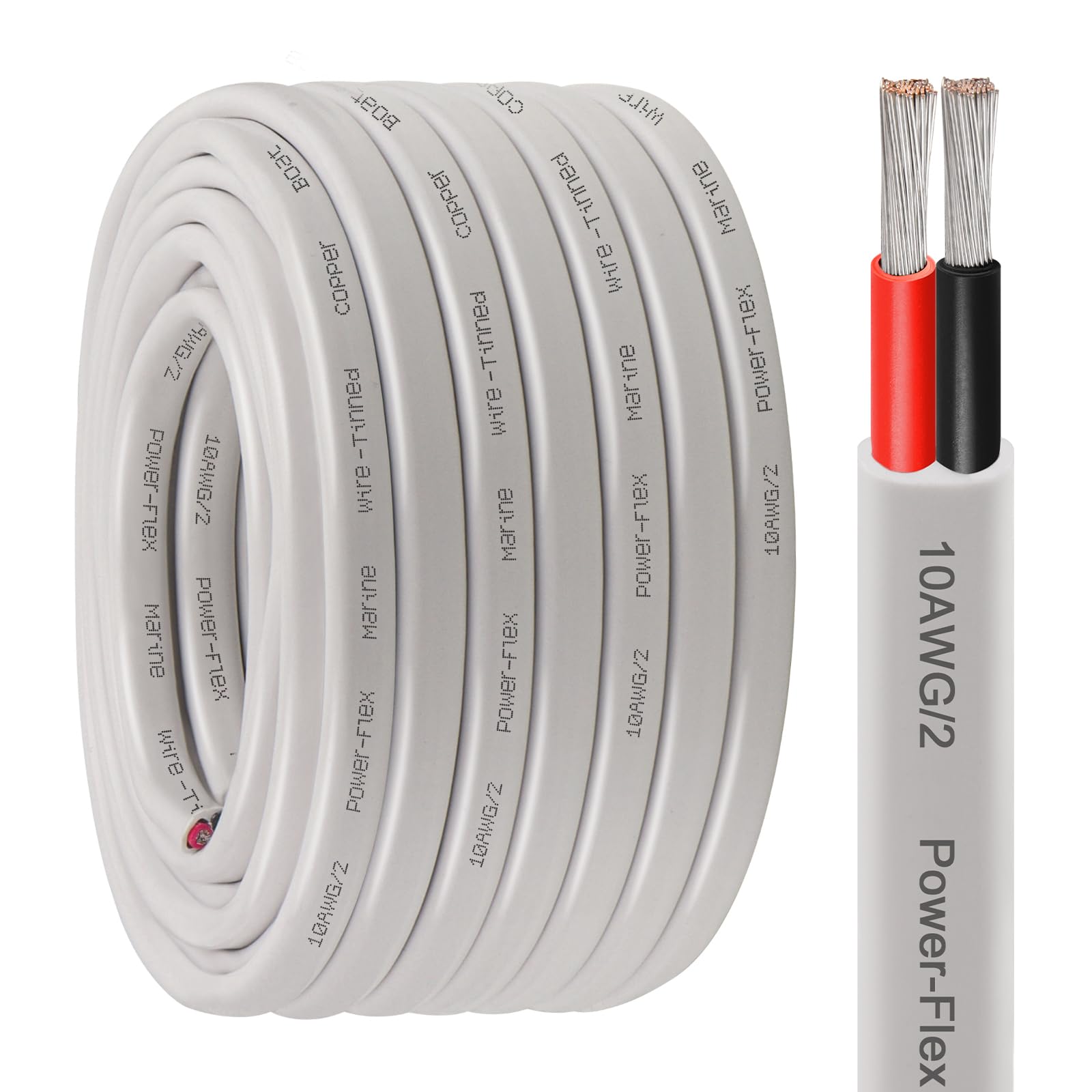

10 Gauge Duplex Marine Wire Tinned Copper Boat Cable - 50ft 10 AWG Oxygen Free Copper (OFC) for Automotive, Boat Speakers, Solar & Outdoor Use - Perfect for Marine Electrical Systems, RV Wiring, and Off-Grid Power Applications
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:24 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:50963719
Product Description

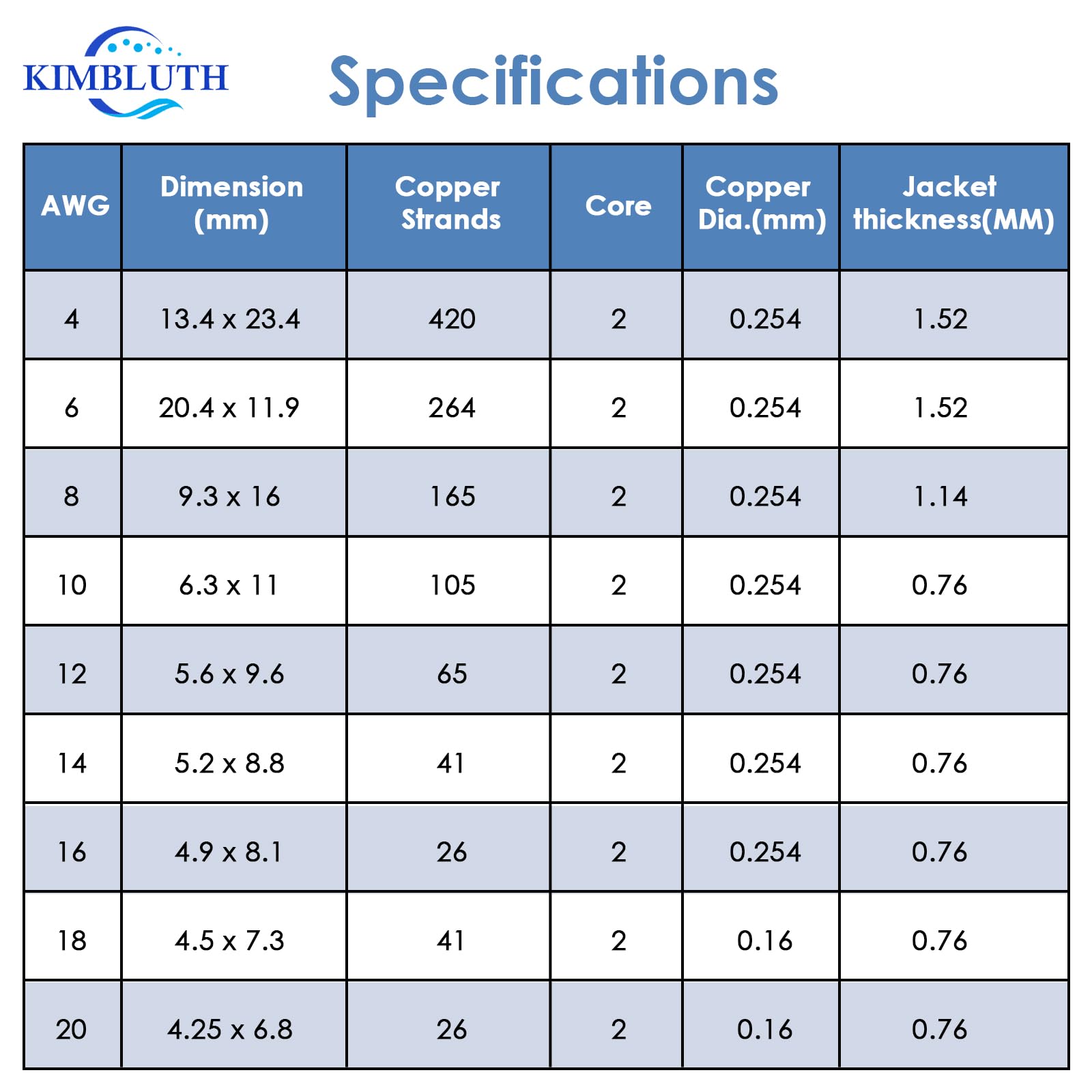

Standard USA Marine Wire We have customized a PVC jacket to prevent seawater corrosion, effectively extending the service life of the wire Wires with more than 98% copper content, standard OFC marine wires. Specification Gauge 4/6/8/10/12/14/16/18/20 Max voltage 600V Conductor Tinned copper Insulator PVC Temperature -40-105℃ Resistance ≤3.39 Ω/KM (10 Gauge) Core 2C Tinned copper Kimbluth uses the highest technology tinned copper to produce wires. Tinned copper is mainly used to prevent OFC from oxidizing, effectively improving conductivity and extending the service life of the wire. So it is very suitable for outdoor, communication and ships Widely used wires In addition to anti-corrosion, our wires are also flexible to prevent hardening of the jacket due to UV, so it can be used in extreme marine environments. Kimbluth Marine Grade Wire Duplex Marine Wire Marine Grade Wire Triplex Marine Wire Cable Core 2 conductor Cable Core Single Core Cable Core 3 conductor Insulation PVC Jacket+insulator Insulation PVC Jacket Insulation PVC Jacket+insulator Gauge 4-20 AWG Gauge 2-18 AWG Gauge 8-18 AWG
Product Features
Made of tinned copper to improve the stability, conductivity, corrosion resistance and effective anti-circuit interference of the cable
Special customed PVC insulations that can effectively prevent wire oxidation, salt waterproof corrosion, high temperature resistance, gasoline, battery acid and abrasion
Operating voltage rate up to 600V, working temperature up to 150 deg dry, 75 deg wet
Standard UL 1426 boat wire, meet SAE ABYC specifications boat cable that can used for marine environments
Electrical copper cable that used in lighting systems, boat applications, automotive applications, household circuit systems and other daily environments, and can also be used in extreme environments such as rivers, lakes, solar applications and marine
Customer Reviews
I recently purchased this 10-gauge marine-grade wire for a boat wiring project, and I couldn’t be happier with the quality. The insulation is thick, durable, and resistant to water, oil, and UV exposure—perfect for harsh marine environments. The copper strands are finely stranded and tinned, making them easy to work with and highly corrosion-resistant.
